2024-07-23

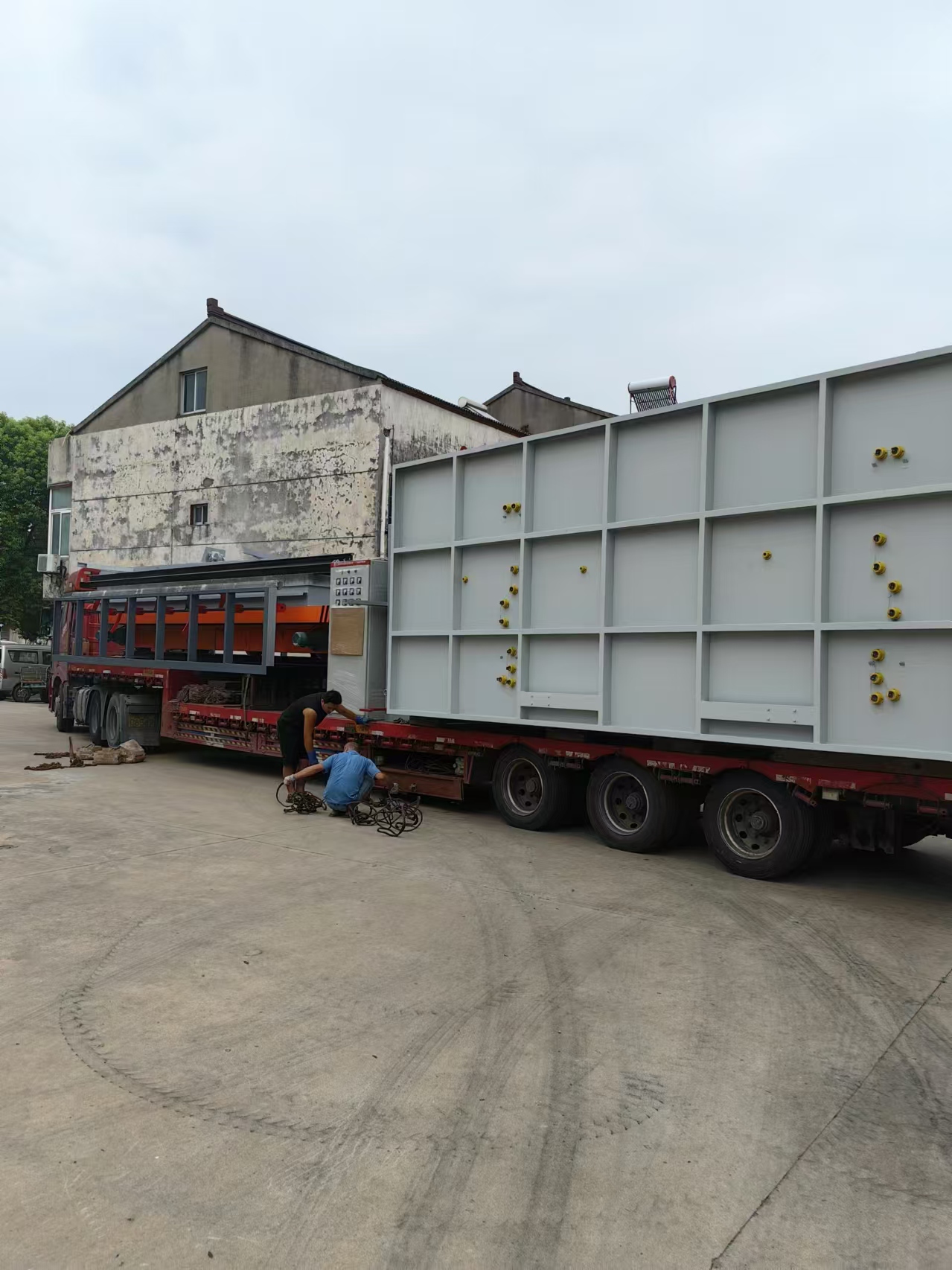

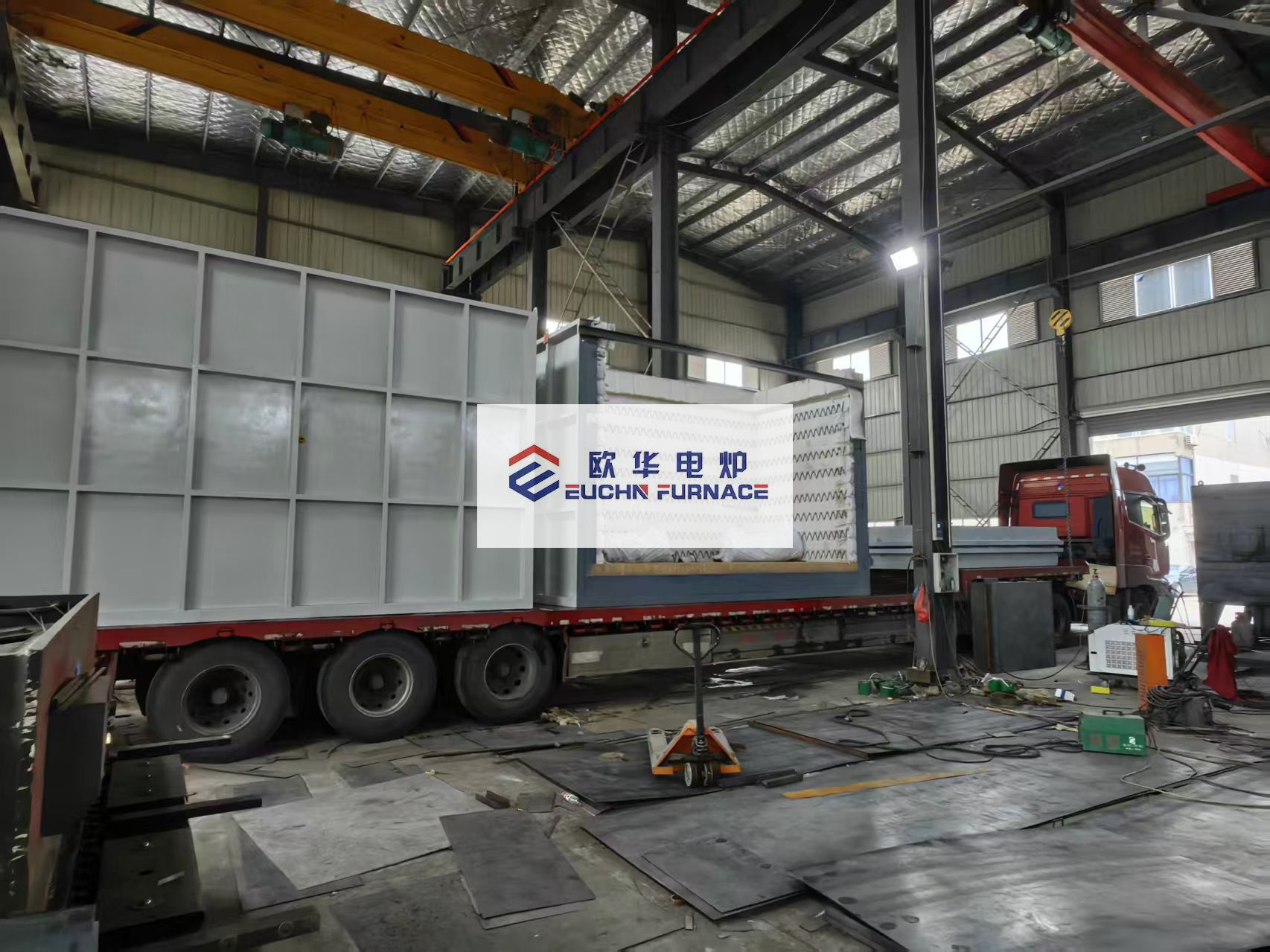

Our company shipped a box-type resistance furnace equipment
Our company shipped a box-type resistance furnace equipment: 1. Equipment use The box-type resistance furnace is mainly used for heating various high, medium and low carbon steels and alloy steels before normalizing or quenching in air. 2. Equipment components: The box-type resistance furnace mainly includes: furnace body, furnace bottom, furnace door; furnace door compression and sealing mechanism; heating elements and fixing devices; furnace temperature control system, etc. 3. Main technical performance index requirements 3.1 Effective working dimensions of furnace 2000×2000×1500mm(length×width×height) 3.2 Total power of equipment 214Kw 3.3 Rated heating power 210Kw (total power can be limited) 3.4 Rated temperature 1100℃ (maximum temperature, actual use <1050℃) 3.5 Temperature uniformity of working area ≤±10℃ (measured after 1 hour of insulation at 1050℃) 3.6 Maximum load bearing 3000kg 3.7 Empty furnace heating time 2.5h 3.8 Heating method 1 zone, PID control, thermal radiation heating 3.9 Power supply ~380V, frequency 50Hz 3.10 Temperature rise of furnace wall outside furnace body Not less than 100㎜≤40℃ from thermal short circuit point
