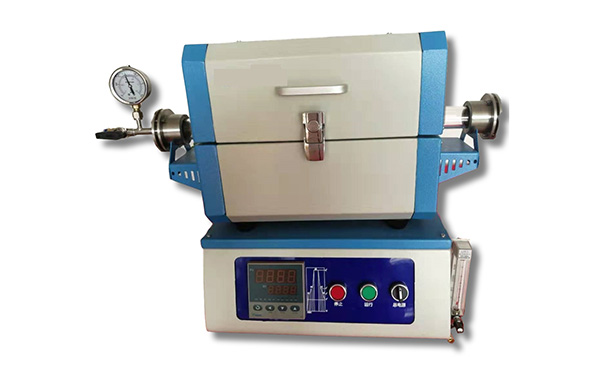

The high-temperature tubular furnace uses high-quality silicon-molybdenum rod as heating element, has a two-layer lining structure, is made of polycrystalline alumina-based fibrous material, and the two-layer furnace body is equipped with an air-cooling system, due to which it can quickly heat and cool.
The high-temperature tubular furnace uses high-quality silicon-molybdenum rod as heating element, has a two-layer lining structure, is made of polycrystalline alumina-based fibrous material, and the two-layer furnace body is equipped with an air-cooling system, due to which it can quickly heat and cool.
A high-purity corundum tube (99) is closed with stainless steel flanges at both ends, and the flow rate is controlled by a flow meter.
| Product type | SLG1700-60 | SLG1700-80 | SLG1700-100 |
| Furnace tube specifications | Ø60/50×1000 | Ø60/50×L1000 | Ø60/50×L1000 |
| Working voltage (v) | Single phase, 220 D, 50/60 Hz | ||
| Maximum power (kW) | 7 | ||
| Heating element | High quality silicon molybdenum rod | ||
| Working temperature | 1600 | ||
| Heating rate (°C/min) | ≤ 20 | ||
| Heating zone | Heating zone length: 300 mm | ||
| Length of constant temperature zone: 150 mm (± 1) | |||
| Vacuum | Working Vaccum: ≤-0.02 MPa | ||
| Supplied gas | Oxygen, nitrogen, argon, hydrogen and other inert atmospheres | ||
| Control method | PID control method, temperature control accuracy: ± 1 | ||
| Sealing system | Stainless steel sealing flanges are provided at both ends of the furnace tube. (Including a precision needle valve, vacuum gauge, hose connector). | ||
