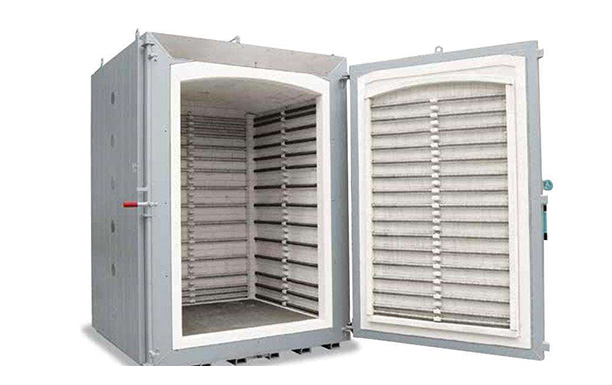

Champer resistance furnace RX

Features:

• Heating is carried out from five sides, the heating uniformity is better, the speed is higher.

• The door of the furnace is raised using a motor or hydraulic drive, automatic remote control, the operation is more convenient and safe.

• The trolley is driven by a front reducer,easy to repair, convenient for remote control.

• Full fiber thermal insulation is more energy-saving than ordinary refractory bricks, by more than 30%, especially suitable for a quenching furnace, which requires rapid heating, fire-resistant fiber absorbs little heat, but has a high insulating capacity, allowing just an hour to achieve the working temperature in the chamber .

• The denser design of the metal base of the furnace ensures long-term use of the equipment,eliminating the need to replace high-wear parts,reducing equipment maintenance costs and  the scale of equipment investment.

• With the use of a new type of electrical resistance heater,it is very convenient for replacement and repair.

• Temperature control is carried out using digital PID adjustment, it is possible to control the temperature in several zones upon the customer's request,temperature control is more accurate, not more than ± 3.

• Additional computer control systems will make operation and data processing easier.
